Distribution amplifier

AudioPressBox® is a Slovakian company that develops and produce professional and high quality distribution amplifiers and audio products. At the distribution amplifier production are the most important client’s requirements about how should distribution amplifier behave and which equipment it should be adaptable with, AudioPressBox® team will ensure that customer will get specific requested product. AudioPressBox® promise a 100% reliability and best quality distribution amplifier and best quality of all of their products. AudioPressBox® also offers new innovative goods such as distribution amplifier APB-P112SB, which can be connected to any mixing console with an analog line out. It lets all the professionals at press conference full service of audio solution. At AudioPressBox® we make sure, that final product quality, design and the purpose of usage, will meet the client’s request. We also produce custom designed distribution amplifier, what will allow a client to make the most of what they get.

What is distribution amplifier? Plainly distribution amplifier is a product that is used to enable two people to listen to the same iPod or other audio device at the same time. More complex distribution amplifier in AudioPressBox® is a splitter for press conferences used by professionals and press people and it is able of distributing an input signal to various output signals. The outputs and inputs can be isolated by distribution amplifier transformer and sometimes it can be increased.

Distribution amplifier - Portable

AudioPressBox® supply full service to press for the indoor and outdoor conference broadcast with portable distribution amplifier. Simple all-in-one solution can direct 4 separate inputs to up to 96 outputs, and like that it can run for over 10 hours. Portable type of distribution amplifier can be connected with extenders to expand to up to 96 outputs. All the distribution amplifiers are high quality, built with best quality preamplifiers.

	APB-112 SB-D – Active, Portable, AudioPressBox unit, 1 channel DANTE input, 12 LINE/Mic outputs 1 channel DANTE input - RJ45 ethercon 12 high quality balanced, individually transformer isolated outputs. each output is switchable between Line or MIC level. the unit is powered only via PoE from DANTE network thanks to DANTE patching you can easily expand number of channels or number of outputs by adding other APB-112 SB-D REQUEST A QUOTE Learn more
	APB-116 P – Active, Portable AudioPressBox with 1 LINE input and 16 LINE/MIC outputs, built-in rechargable Li-Ion AccuPack 1 MIC (phantom power) / LINE Input – balanced with gain control and 26dB PAD 16 High quality internal balanced Outputs, independent transformer isolated Each Output is switchable between MIC or LINE level Switchable High-Pass filter for each Input channel Switchable Compressor and Limiter for each Input channel Constant level Test signal oscillator with no mistake switch operation Headphones control Output Li-Ion AccuPack with microprocessor controlled battery management 10 hour full load capacity. Note: AccuPack is placed inside the unit REQUEST A QUOTE Learn more
	APB-116 SB – Active, Portable AudioPressBox with 1 LINE input and 16 LINE/MIC outputs, built-in rechargable Li-Ion AccuPack 1 LINE Input – balanced with ajustable gain -10db to +20 dB 16 High quality independent transformer balanced and isolated outputs Each Output is switchable between MIC or LINE level Built in High-Pass filter on the frequency of 40Hz Switchable Compressor and Limiter for Input channel Nominal Output level is selectable -6 dBu, 0 dBu, +4 dBu and +6 dBu Li-Ion AccuPack with microprocessor controlled battery management 10 hour full load capacity. Note: AccuPack is placed inside the unit REQUEST A QUOTE Learn more
	APB-124 SB - Active, Portable AudioPressBox with 1 LINE input and 24 LINE/MIC outputs, built-in rechargable Li-Ion AccuPack 1 MIC (phantom power) / LINE Input – balanced with gain control and 26dB PAD 24 High quality independent transformer balanced and isolated outputs Each Output is switchable between MIC or LINE level Switchable High-Pass filter for each Input channel Switchable Compressor and Limiter for each Input channel Constant level Test signal oscillator with no mistake switch operation Li-Ion AccuPack with microprocessor controlled battery management 8 hour full load capacity. Note: AccuPack is placed inside the unit REQUEST A QUOTE Learn more
	APB-224 C - Active, Portable AudioPressBox with 2 routable LINE inputs (A, A+B, B) and 24 LINE/MIC outputs, built-in rechargable Li-Ion AccuPack 2 MIC (phantom power) / LINE Inputs – balanced with gain control and 26dB PAD Each Input is routable to A/(A+B)/B Outputs Group 24 High quality independent transformer balanced and isolated outputs Each Output is switchable between MIC or LINE level 2 internal Output Groups: 12x Output A and 12x Output B Switchable High-Pass filter for each Input channel Switchable Compressor and Limiter for each Input channel PFL/AFL for each Input/Output channel Constant level Test signal oscillator with no mistake switch operation Headphones control Output for PFL/AFL Li-Ion AccuPack with microprocessor controlled battery management 10 hour full load capacity. Note: AccuPack is placed inside the unit REQUEST A QUOTE Learn more
	APB-416 C - Active, Portable AudioPressBox with 4 routable LINE inputs (A, A+B, B) and 16 LINE/MIC outputs, built-in rechargable Li-Ion AccuPack 4 MIC (phantom power) / LINE Inputs – balanced with gain control and 26dB PAD Each Input is routable to A/(A+B)/B Outputs Group 16 High quality independent transformer balanced and isolated outputs Each Outputs is switchable between MIC or LINE level 2 internal Output Groups: 8x Output A and 8x Output B Switchable High-Pass filter for each Input channels Switchable Compressor and Limiter for each Input channel PFL/AFL for each Input/Output channels Constant level Test signal oscillator with no mistake switch operation Headphones control Output for PFL/AFL Li-Ion AccuPack with microprocessor controlled battery management 10 hour full load capacity. Note: AccuPack is placed inside the unit REQUEST A QUOTE Learn more
	APB-Portable PressBox Pack – Portable AudioPressBox bundle with 1 Drive unit (D100) and 4 Portable expanders each with 8 LINE/MIC outputs (008 SB-EX) D100 (x1 included) Portable Drive Unit 1 Balanced LINE Input Switchable High-Pass filter Switchable Compressor and Limiter for Input channel 2 separately buffered Outputs for 6 AudioPressBox 8-output expanders. 008 SB-EX (x4 included) 1 Balanced LINE Input 8 High quality internal balanced Outputs, independent transformer isolated Each Output is switchable between MIC or LINE level REQUEST A QUOTE Learn more

Have you got any questions?
Let us help you!

	APB-448 SB - Active, Portable AudioPressBox with 4 routable LINE inputs (A, A+B, B) and 48 LINE/MIC outputs, built-in rechargable Li-Ion AccuPack 4 MIC (phantom power) / LINE Inputs – balanced with gain control and 26dB PAD Each Input is routable to A/(A+B)/B Outputs Group 48 High quality independent transformer balanced and isolated outputs Each Output is switchable between MIC or LINE level 2 internal Output Groups: 24x Output A and 24x Output B 2 separate buffered A and B Outputs for driving up to 48 channels of passive extenders: APB-024 R-EX, APB-008 IW/OW, APB 008FB, APB P008 IW/OW or APB-P112 Switchable High-Pass filter for each Input channel Switchable Compressor and Limiter for each Input channel PFL/AFL for each Input/Output channel Constant level Test signal oscillator with no mistake switch operation Headphones control Output for PFL/AFL Li-Ion AccuPack with microprocessor controlled battery management 8 hour full load capacity. Note: AccuPack is placed inside the unit REQUEST A QUOTE Learn more
	APB-D100 – Active, Portable AudioPressBox Drive unit with 1 LINE input and 2 buffered outputs for 6 AudioPressBox 8- LINE/MIC output expanders. Portable Drive Unit 1 Balanced LINE Input Switchable High-Pass filter Switchable Compressor and Limiter for Input channel 2 separately buffered Outputs for 6 AudioPressBox 8-LINE/MIC output expanders. REQUEST A QUOTE Learn more
	APB-008 SB-EX – Passive Portable AudioPressBox expander with 8 LINE/MIC outputs – requires a DRIVE UNIT! 1x Balanced LINE Input 8x High quality internal balanced Outputs, independent transformer isolated Each Output is switchable between MIC or LINE level REQUEST A QUOTE Learn more
	APB-P112 SB - Passive AudioPressBox with 1 LINE Input and 12 LINE/MIC Outputs. 1 balanced LINE Input 12 High quality independent transformer balanced and isolated outputs REQUEST A QUOTE Learn more
	APB-116 R - Rack AudioPressBox with 1 LINE input and 16 LINE/MIC outputs 1 MIC (phantom power) / LINE Input – balanced with gain control and 26dB PAD 16 High quality independent transformer balanced and isolated outputs Each Output is switchable between MIC or LINE level 2 internal Output Groups: 8x Output A and 8x Output B Switchable High-Pass filter for each Input channel Switchable Compressor and Limiter for each Input channel Constant level Test signal oscillator with no mistake switch operation Headphones control Output REQUEST A QUOTE Learn more

Distribution amplifier - Installation

Simple handling and installation of distribution amplifier is a bonus and our goal in the production of all audio products. With installation extenders, our customers can set up to 4 input microphone/line signals to more places in the room at once and route them individually to two groups. For more information you can find an installation diagram on our website. You can also find a full description and specification of each distribution amplifier.

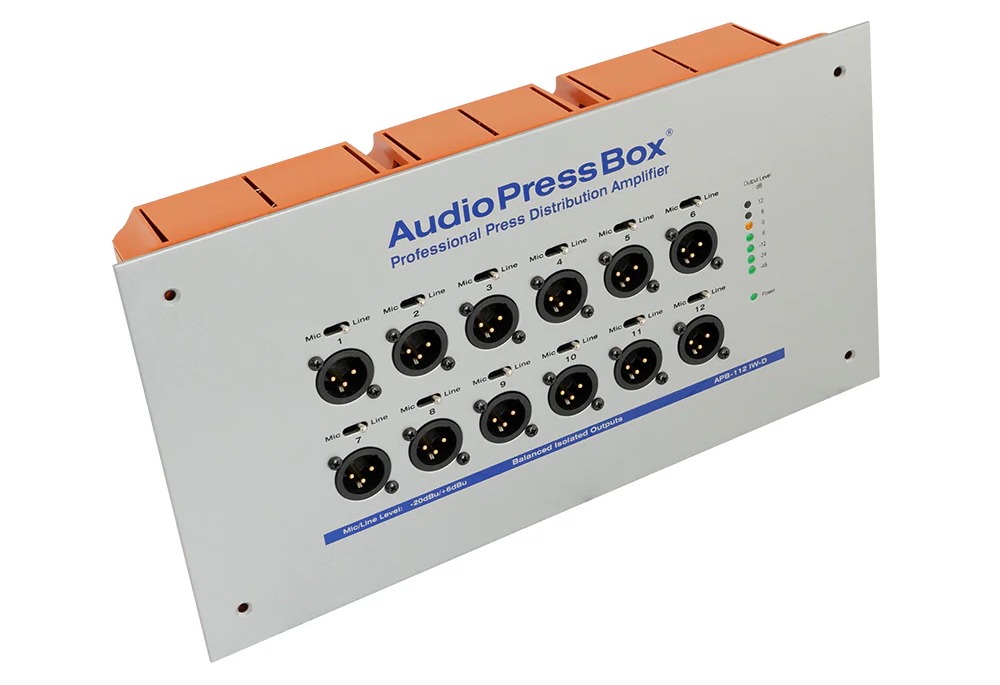

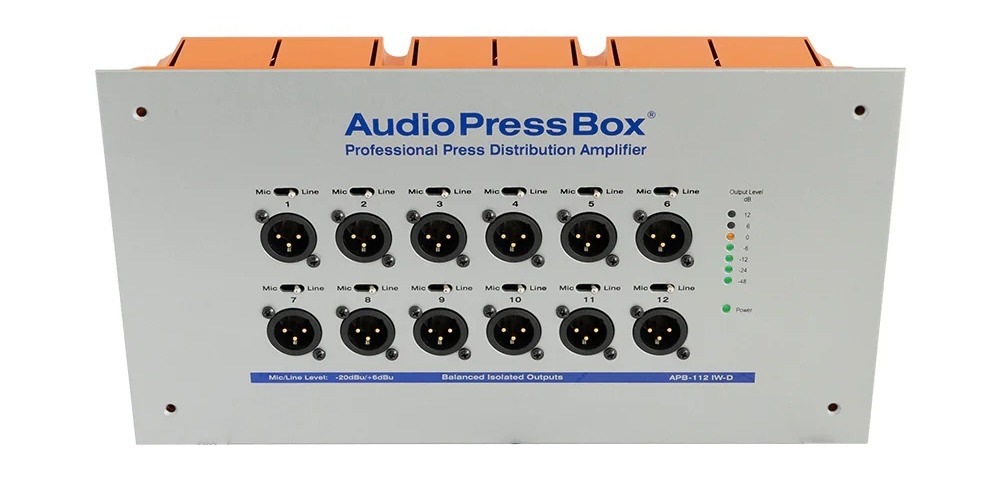

	APB-112 IW-D – Professional, in wall, active, AudioPressBox unit with 1 channel DANTE input and 12 LINE/Mic outputs. It is powered via PoE so you need only 1 cable for the signal and power. The easy install allows for quick setup. 1 channel DANTE input - RJ45 12 high quality balanced and individually transformer isolated outputs Each Output is switchable between MIC or LINE output level The unit is powered only via PoE from DANTE network Thanks to DANTe patching you can easily expand number of channels or number of outputs by adding other APB-112 IW-D REQUEST A QUOTE Learn more

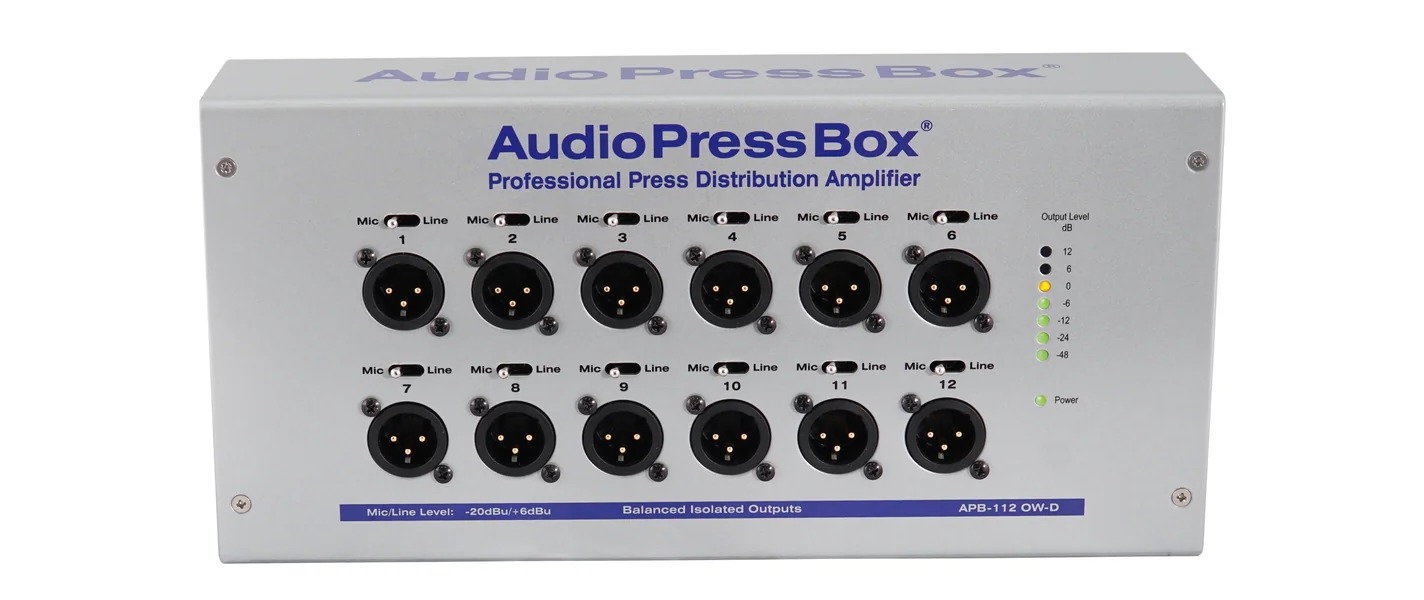

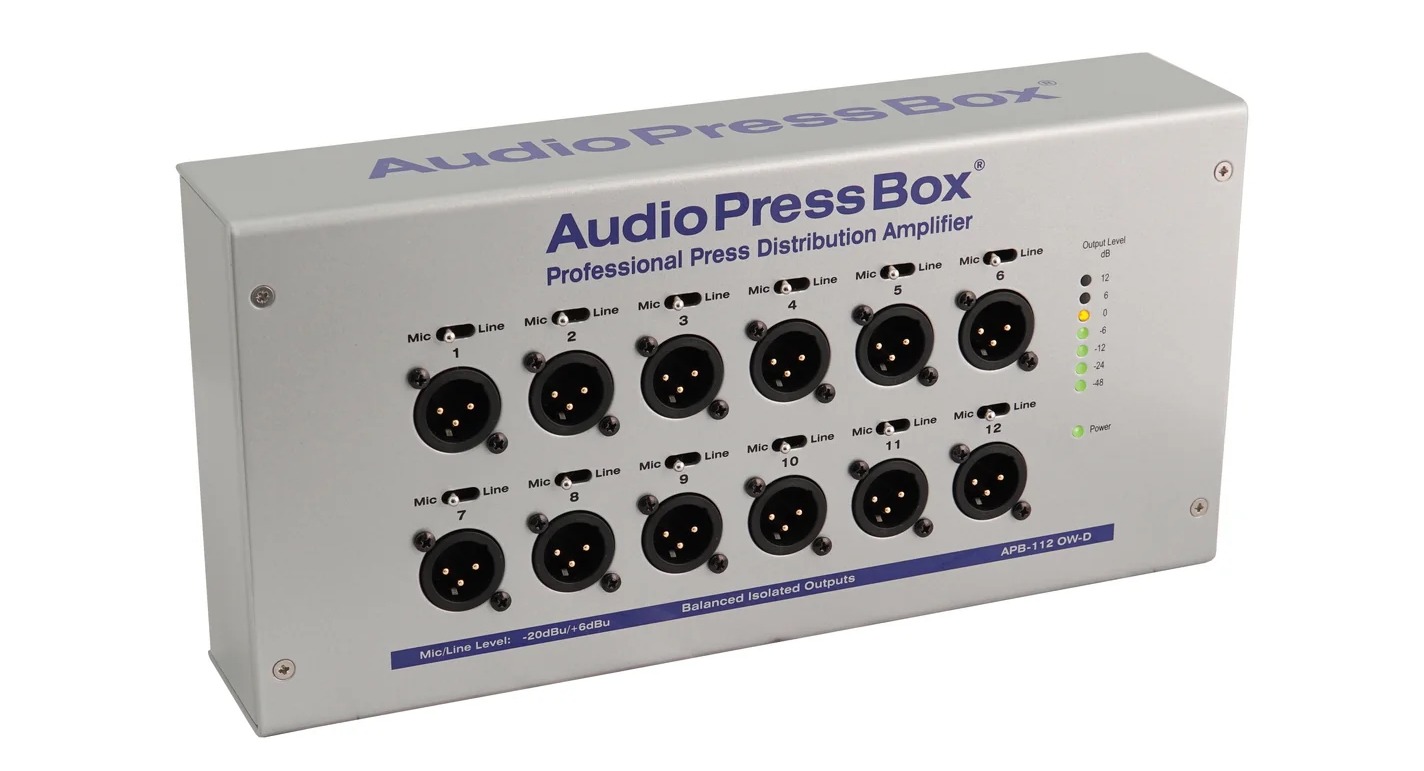

	APB-112 OW-D – Active, On Wall, AudioPressBox unit, 1 channel DANTE input, 12 LINE/Mic outputs 1 channel DANTE input - RJ45 ethercon 12 high quality balanced, individually transformer isolated outputs. each output is switchable between Line or MIC level. the unit is powered only via PoE from DANTE network thanks to DANTe patching you can easily expand number of channels or number of outputs by adding other APB-112 OW-D REQUEST A QUOTE Learn more
	APB-D116 R-D – Active 19″ rack, AudioPressBox Drive Unit, 1 LINE Input, 1-channel Dante Interface, 16 Line/MIC Outputs, 1 buffered Output for up to 3 AudioPressBox expanders. Active Rack APB 1 Line/Dante In / 16 Out Drive unit, DANTE REQUEST A QUOTE Learn more
	APB-D216 R-D – Active 19″ rack, AudioPressBox Drive Unit, 2 LINE Inputs, 2-channel Dante Interface, 16 Line/MIC Outputs, 2 buffered Outputs for up to 6 AudioPressBox expanders. Active Rack APB 2 Line/Dante In / 16 Out Drive unit, DANTE REQUEST A QUOTE Learn more
	APB-D100 R – Active, Rack AudioPressBox Drive unit with 1 LINE input and 2 buffered outputs for 6 AudioPressBox 8- LINE/MIC output expanders. Rack Drive Unit 1 Balanced LINE Input Switchable High-Pass filter Switchable Compressor and Limiter for Input channel 2 separately buffered Outputs for 6 AudioPressBox 8- LINE/MIC output expanders. REQUEST A QUOTE Learn more
	APB-D200 R – Active, Rack AudioPressBox Drive unit with 2 LINE inputs and 4 buffered outputs for 12 AudioPressBox 8- LINE/MIC output expanders. Rack Drive Unit 2 Balanced LINE Inputs Switchable High-Pass filter Switchable Compressor and Limiter for Input channels 4 separately buffered Outputs for 12 AudioPressBox 8-output expanders. REQUEST A QUOTE Learn more
	APB-D200 R-D - Active 19” rack AudioPressBox distribution Drive Unit, Dante Interface - 2 channels, 2 LINE Inputs, 4 buffered Outputs for 12 AudioPressBox expanders. Professional active 19” rack AudioPressBox Drive unit DANTE interface - 2 channels 2 Channels (balanced LINE Input / DANTE) Switchable High-Pass filter for for each Input channel Switchable Compressor and Limiter for for each Input channel 4 separately buffered Outputs (2 for each channel) that can drive 6x APB-008 or 2x APB-024 Output expanders. Maximum drive capacity 96 Line or Mic Outputs. REQUEST A QUOTE Learn more
	APB-208 R – Rack AudioPressBox with 2 routable LINE inputs (A, A+B, B), 8 LINE/MIC outputs 2 MIC (phantom power) / LINE Input – balanced with gain control and 26dB PAD Each Input is routable to A/(A+B)/B Outputs Group 8 High quality independent transformer balanced and isolated outputs Each Output is switchable between MIC or LINE level 2 internal Output Groups: 4x Output A and 4x Output B 2 separate buffered A and B Outputs for driving up to 48 channels of passive extenders: APB-024 R-EX, APB-008 IW/OW, APB 008FB, APB P008 IW/OW or APB-P112 Switchable High-Pass filter for each Input channel Switchable Compressor and Limiter for each Input channel PFL/AFL for each Input/Output channel Constant level Test signal oscillator with no mistake switch operation Headphones control Output for PFL/AFL REQUEST A QUOTE Learn more
	APB-400 R - Rack AudioPressBox with 4 routable LINE inputs (A, A+B, B) 4 MIC (phantom power) / LINE Inputs – balanced with gain control and 26dB PAD Each Input is routable to A/(A+B)/B Outputs Group 4 separate buffered A and B Outputs for driving up to 48 channels of passive extenders: APB-024 R-EX, APB-008 IW/OW, APB 008FB, APB P008 IW/OW or APB-P112 Switchable High-Pass filter for each Input channel Switchable Compressor and Limiter for each Input channel PFL/AFL for each Input/Output channel Constant level Test signal oscillator with no mistake switch operation Headphones control Output for PFL/AFL REQUEST A QUOTE Learn more

Distribution amplifier - Expanders

Extender unit is for everywhere, where you need more output signals. Those are the places for instance, where you need to share your signal all over one or more rooms. AudioPressBox® only offer the best quality distribution amplifier extenders, just like all the other quality audio devices. Distribution amplifier extenders can be combined to expand to 96 outputs. With all the distribution amplifier extenders from AudioPressBox® you’ll be able to deem high customary in quality and repair. We offer full description, specification and alternative details concerning our merchandise on our web site next to every specific product.

	APB-024 R-EX - Rack AudioPressBox expander with 24 LINE/Mic outputs 24 High quality independent transformer balanced and isolated outputs Each Output is switchable between MIC or LINE level 2 internal Output Groups: 12x Output A and 12x Output B REQUEST A QUOTE Learn more
	APB-008 OW-EX – On wall AudioPressBox expander with 8 LINE/MIC outputs 8 High quality independent transformer balanced and isolated outputs Each Output is switchable between MIC or LINE level 2 internal Output Groups: 4x Output A and 4x Output B REQUEST A QUOTE Learn more
	APB-P008 OW-EX – On wall AudioPressBox expander with 8 MIC outputs 8 High quality independent transformer balanced and isolated outputs REQUEST A QUOTE Learn more
	APB-008 IW-EX – In wall AudioPressBox expander with 8 LINE/MIC outputs 8 High quality independent transformer balanced and isolated outputs Each Output is switchable between MIC or LINE level 2 internal Output Groups: 4x Output A and 4x Output B REQUEST A QUOTE Learn more
	APB-P008 IW-EX – In wall AudioPressBox expander with 8 MIC outputs 8 High quality independent transformer balanced and isolated outputs REQUEST A QUOTE Learn more
	APB-008 FB-EX –Floor Box AudioPressBox expander with 8 LINE/MIC outputs 8 high quality independent transformer balanced and isolated outputs Each Output is switchable between MIC or LINE level 2 internal Output Groups: 4x Output A and 4x Output B REQUEST A QUOTE Learn more

Distribution amplifier - Accessories

AudioPressBox® also offers distribution amplifier accessories, which are necessary. Recording cables are accessories for distribution amplifier and they are made to connect many separate recording devices with 3,5 mm Jack Mic or Line input. Some of them are single cables designed to connect recording implements with 3,5 mm Jack Mic or Line input. AudioPressBox® brings additionally a case for your distribution amplifier which is incredibly helpful accent. Case is for carrying distribution amplifier + cables, charger and other useful accessories. Distribution amplifier case is a unit made from solid aluminium frame, it has locking clasps and separators for accessories. Additionally you will need a charging cable for charging distribution amplifier from 12/24V automobile cigarette lighter outlet.

recording cable for Distribution Amplifiers

RC 3,5-1 - Recording cable for AudioPressBox®

RC 3,5 – 1 is single cable designed for connecting separate recording equipment with 3,5mm Jack Mic or Line input, regardless Stereo or Mono input jack configuration. Special electronic curcuit built-in XLR connector provide level and impedance matching and DC blocking.

REQUEST A QUOTE Learn more

recording cables for Distribution Amplifiers

RC 3,5-8 - Recording cable for AudioPressBox®

RC 3,5 – 8 is eightfold cable designed for connecting eight separate recording equipment with 3,5mm Jack Mic or Line input, regardless Stereo or Mono input jack configuration. Special electronic curcuit built-in XLR connector provide level and impedance matching and DC blocking.

REQUEST A QUOTE Learn more

car charging cable for Distribution Amplifiers

CChC - Car Charging Cable for AudioPressBox®

CChC is cable for charging APB-116SB from 12/24V car Cigarette Lighter outlet

REQUEST A QUOTE Learn more

Where to buy Audio Press Box - Distribution amplifier

You can find the list of our resellers/dealers worldwide in our where to buy section or you can contact us directly at: sales@audiopressbox.com
