AudioPressBoxAPB-024 R-EX

Rack unit 24 Line/MIC outputs Expander

A professional press box (Audio Splitter) expander featuring 24 Line/MIC outputs in a Rack.
Outputs are divided to channel A and channel B so it can also be used for bilingual conferences.
Each Output is independet transformer balanced and isolated.

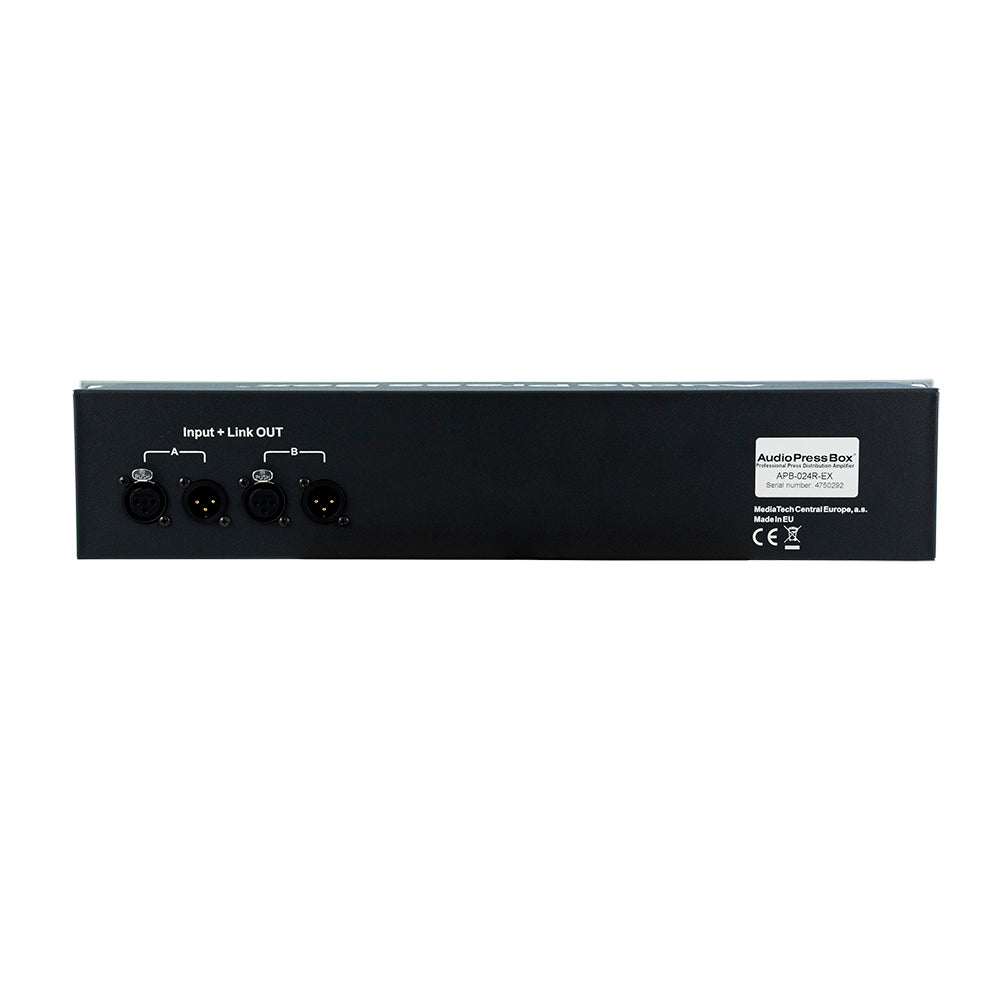

It has 2 inputs with 3-pin XLR connectors, one for each Output channel.
You can route each Input to Output Channel A or B or both.
It also has 2 link Outputs so you can daisy chain additional expanders if you need additional Line/MIC Outputs.

The expander must be fed with an APB-Drive unit in order to function properly.

REQUIRES A DRIVE UNIT: APB-D100, APB-D100 R, APB-D116 R-DANTE, APB-D200 R, APB-D200 R-DANTE, APB-D216 R-DANTE, APB-208 R, APB-400 R

More technical parameters

IN STOCK

Delivery time: 2-5 business days worldwide.

REQUEST A QUOTE WHERE TO BUY

any questions?

Description
Features
Video
Application
Block Diagram
Specifications
Downloads

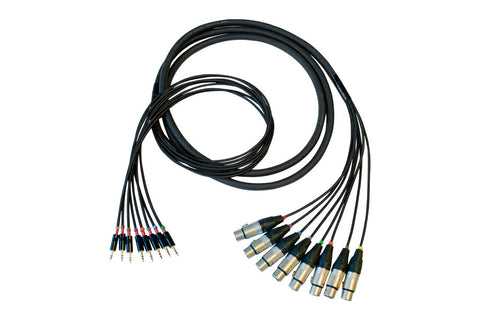

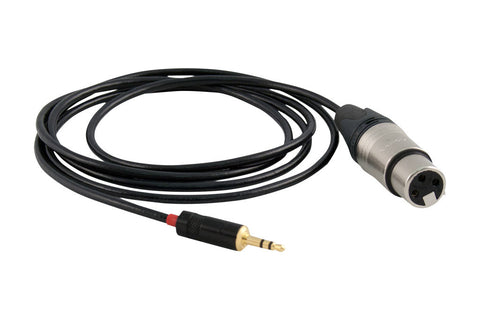

Accessories
Request

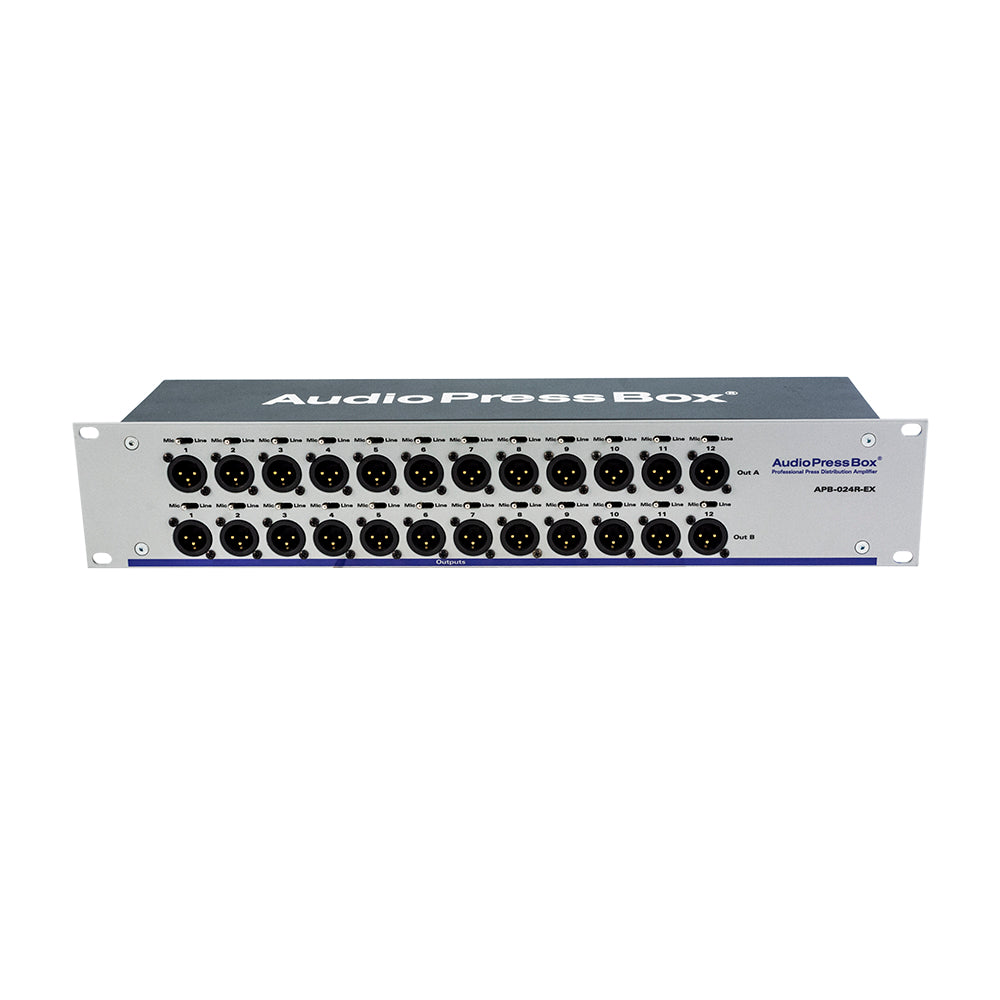

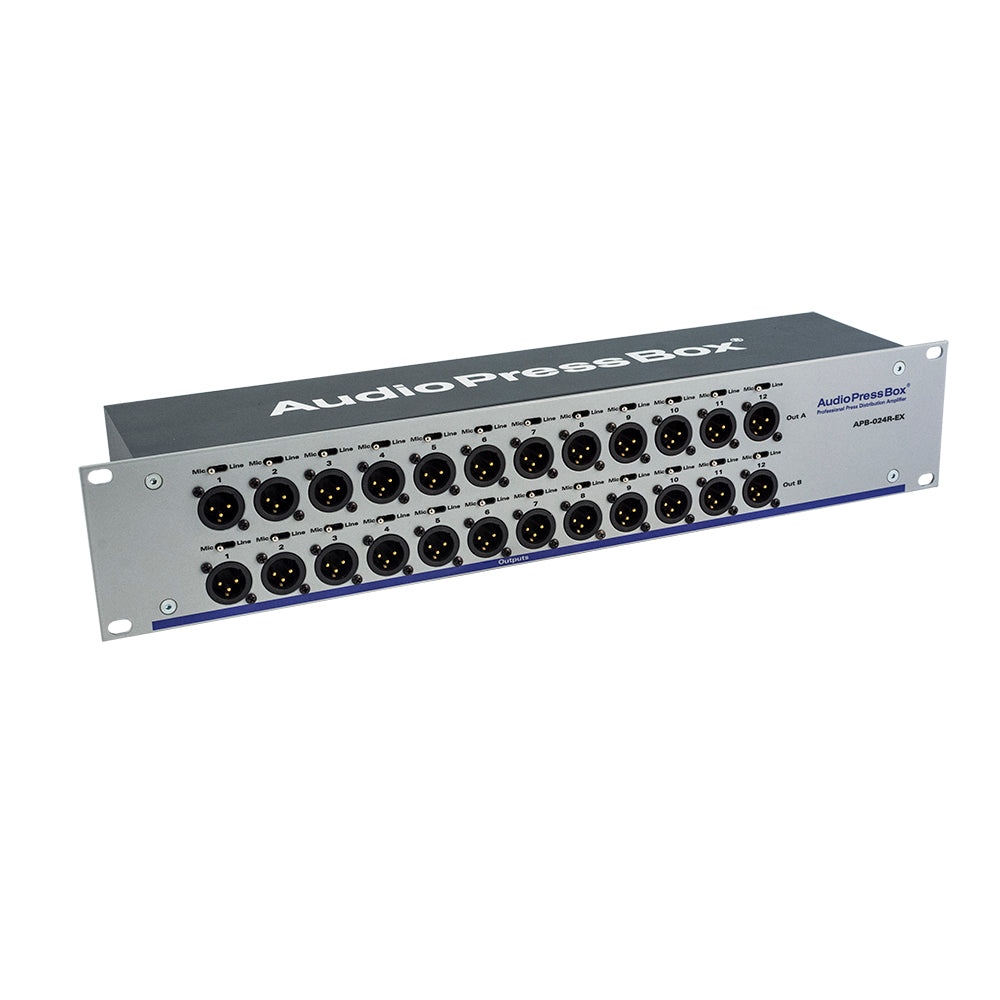

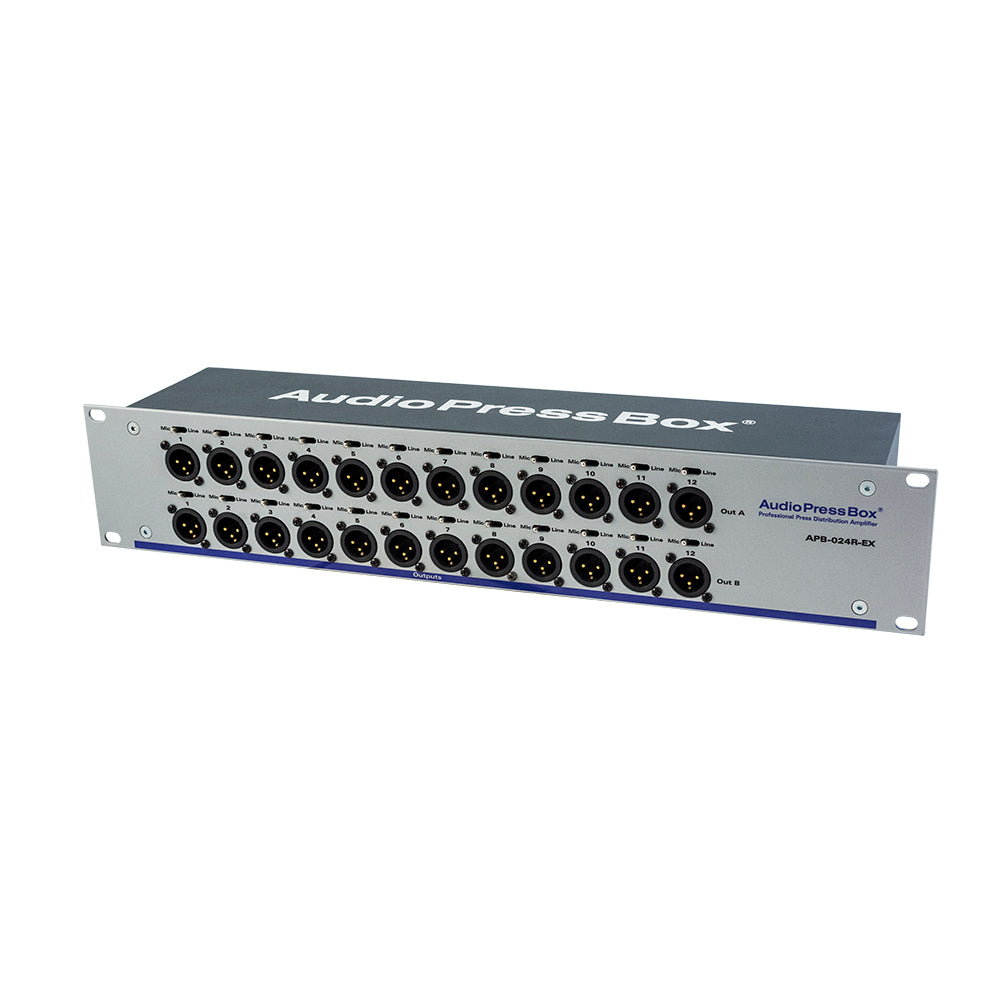

24 High quality balanced Outputs, each Output is independent transformer isolated
Each Output is switchable between LINE or MIC Output level.
2 internal Output Groups: 12x Output A and 12x Output B
AudioPressBox delivers audio in broadcast quality

Note: Source: APB-D100, APB-D100 R, APB-D116 R-DANTE, APB-D200 R, APB-D200 R-DANTE, APB-D216 R-DANTE, APB-208 R (RPS), APB -400 R (RPS)

Audio Press Box APB-024 R-EX
Type	Expander
Groups	2
Inputs	1x Bus A 1x Bus B
Input connectors	ballanced, XLR
Ouputs	12x Bus A, Line/MIC level 12x Bus B, Line/MIC level
Output connectors	ballanced, XLR-M connector
Transfomer isolated outputs	Yes (each output)
Nominal Output level	MIC: -20dBu LINE: +6 dBu
Output Impedance	MIC: 220Ω LINE: 600Ω
Dimensions (WxHxD)	480x150x90mm
Weight	2830g
