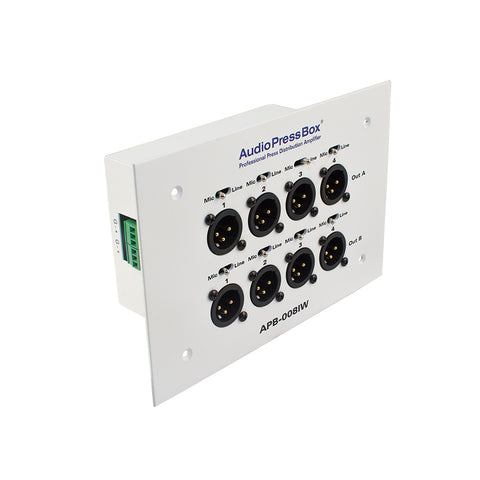

AudioPressBoxAPB-008 IW-EX

In wall 8 Line/MIC Outputs Expander

A professional press box (Audio Splitter) expander featuring 8 Line/MIC outputs designed for system integrators for fixed installation.
The IW stands for IN WALL as it is for flush mounting.
Outputs are divided to channel A and channel B so it can also be used for bilingual conferences.
Each Output is independet transformer balanced and isolated.
It has 2 inputs with 3-pin phoenix connectors, one for each Output channel.
You can route each Input to Output Channel A or B or both via jumpers.

The expander must be fed with an APB-Drive unit in order to function properly.

WBOX Series Flush mounting boxes - SCAME
Dimensions: 153x98x70mm
Net Weight: 0.123 kg
Colour: Orange
SCAME Flush mounting box is designed for system integrators for fixed installation together with our APB-008 IW-EX and or APB-P008 IW-EX.

Flush mounting junction box is included in the APB-008 IW-EX package.

It is also availaible in accessories section.

REQUIRES A DRIVE UNIT as a SOURCE: APB-D100, APB-D100 R, APB-D116 R-DANTE, APB-D200 R, APB-D200 R-DANTE, APB-D216 R-DANTE, APB-208 R, APB-400 R

More technical parameters
IN STOCK

Delivery time: 2-5 business days worldwide.

REQUEST A QUOTE WHERE TO BUY

email

any questions?

share

  • 8 High quality balanced Outputs, each Output is independent transformer isolated
  • Each Output is switchable between LINE or MIC Output level.
  • 2 internal Output Groups: 4x Output A and 4x Output B
  • AudioPressBox delivers audio in broadcast quality

Note: Source: APB-D100, APB-D100 R, APB-D116 R-DANTE, APB-D200 R, APB-D200 R-DANTE, APB-D216 R-DANTE, APB-208 R (RPS), APB-400 R (RPS)


8x TRANSFORMER Transformer Separately transformer isolated outputs.

Press conference with a mixing console and speakers:

 AudioPressBox, Mult Box, PressBox, Mult Box, Press Patch Box, Pressesplitter, APB-008 IW-EX

Audio Press Box APB-008 IW-EX
Type Expander
Groups 2
Inputs 1x Bus A
1x Bus B
Input connectors ballanced, 3-pin phoenix connector
Ouputs 4x Bus A, Line/MIC level
4x Bus B, Line/MIC level
Output connectors ballanced, XLR-M connector
Transfomer isolated outputs Yes (each output)
Nominal Output level MIC: -20dBu
LINE: +6 dBu
Output Impedance MIC: 220Ω
LINE: 600Ω
Dimensions (WxHxD) 180x120x63mm
Weight 970g

If you wish to have a specific AudioPressBox of this type - Colour, number of inputs / outputs please let us know! You will be contacted as soon as possible within 24 hours.
